Non-spring DC Motor Car Park Barrier Gate

» Cost effecitve economical car park barrier

» Non-spring design

» 0.9~6 second speed adjustable

» Boom direction is exchangeable

» Manually control when power off

» Boom automatically open when power off

» Boom swing out protect boom and vehicle

» Boom automatically reverse on obstacles

  • Item NO. : PAB-SE Economical

  • Order(MOQ): 1 Set

  • Color : Grey or customized

  • Lead Time : 7~10 working days

  • Warranty : 1 year

  • Certificates : CE

  • OEM : Available

  • Features
  • Specifications
  • Video


Non-spring DC Motor Car Park Barrier Gate


PAB-SE Economical car park barrier gate was specially designed to reduce the procurement cost for parking facility, but still with high quality. It adopts non-spring design which no need to adjust balance, and no need to caculate the number of spring when you change arm. Thanks to the PWM variable frequency controller, the opening/closing time is adjustable from 0.9 to 6 second. With the help of 5 million MTBF free-maintenance brushless DC motor, the barrier gate can work with long life span. Special mechnical structure design makes boom direction exchangeable. Check all models cover different arm types, arm lenght and speed in below table:


Model No.

Opening/closing time Max. Arm lenght Arm Type
2s 3.5m

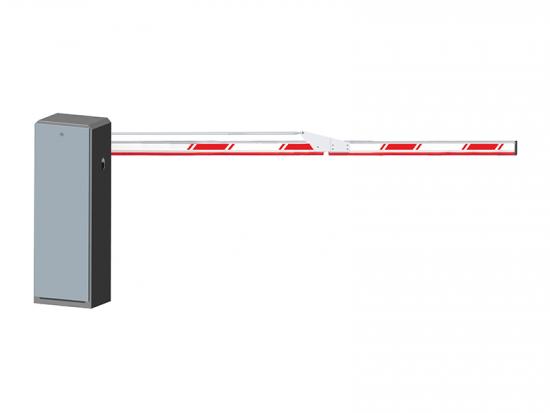

Telescopic straight arm (Octagonal )

3s 4m
4s 5m
6s 6m
PAB-SE-HSN 0.9s 3m

Straight arm (Octagonal)

2s 3.5m

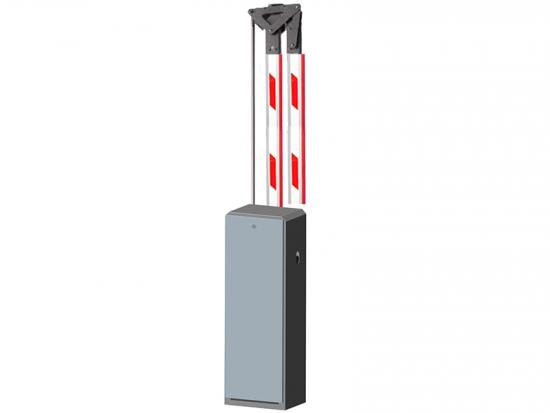

90 degree articulated arm (Octagnoal)

3s 4m
6s 6m
2s 3.5m

180 degree articulated arm (Octagonal)

3s 4m
6s 6m

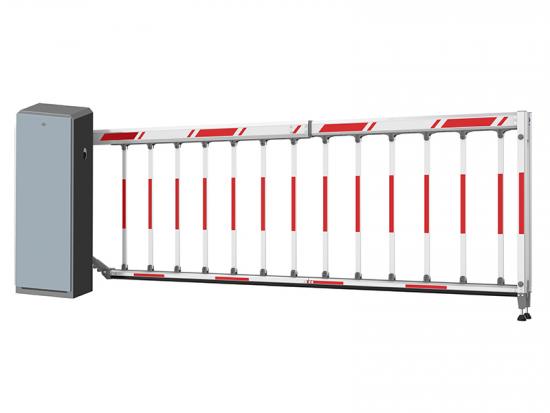

PAB-SE-FN 6s 5m Single fence arm




  • Non spring barrier gate

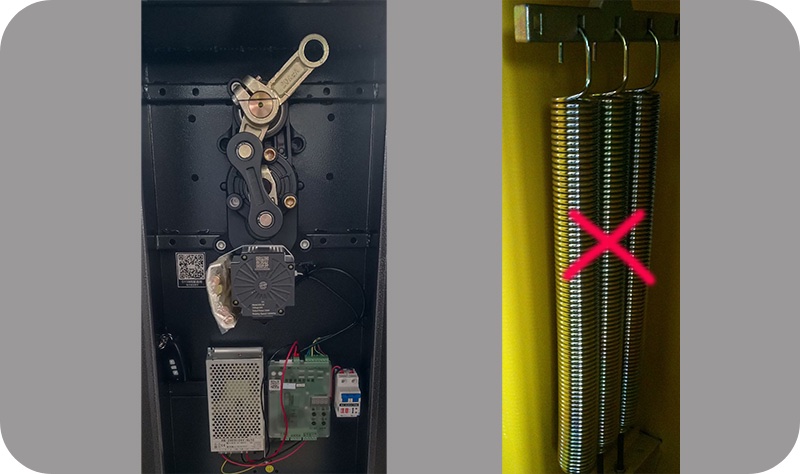

    Non-spring Design Reduces Cost


    No spring is used for this car barrier gate, no need to adjust balance hardly, and no need to caculate the number of spring when you change different type of arm or adjust arm lenght. Most important, non-spring design reduces the cost of barrier.

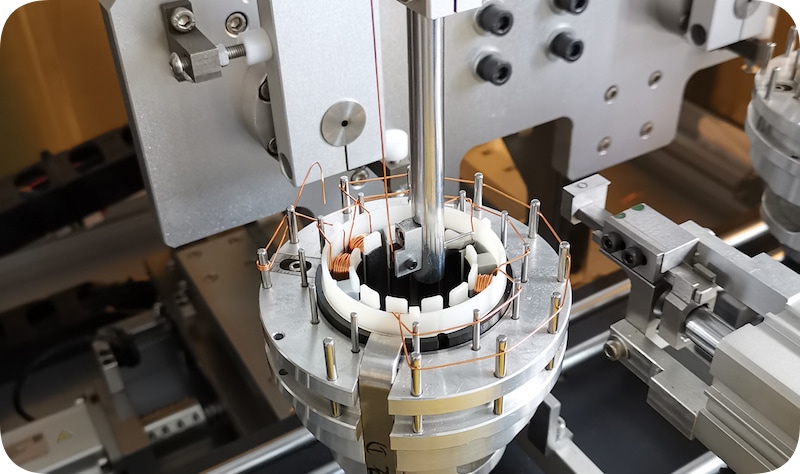

  • 5 Million MTBF Brushless DC Motor


    Free-maintenance DC24V brushless motor ensures more than 5 million cycles MTBF long life span; Max. 100W low consumption of the motor means less power but outputs super strong torque.

  • Car Parking Barrier Gate

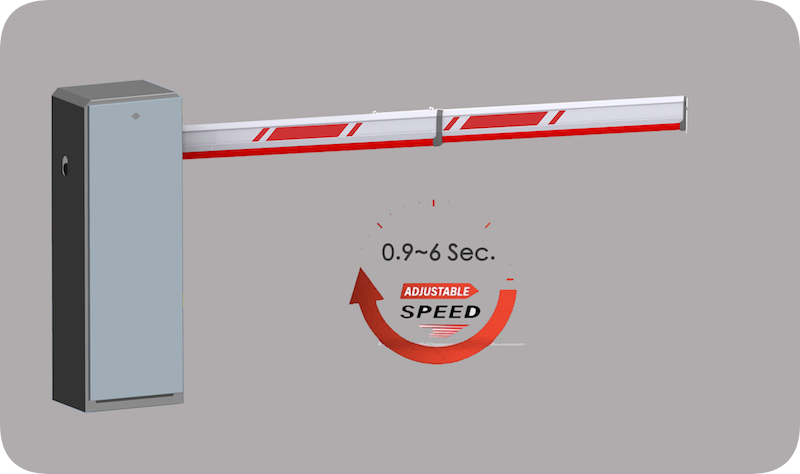

    0.9~6 Second Speed Adjustable


    The barrier gate adopts digital frequency servo controller, which allows the stepless speed control of the drive motor under the condition of no loss of output torque, and the opening/closing time can be respectively adjustable between 09s,or 2~3s or 3~6s.

  • Automatic Barrier Gate

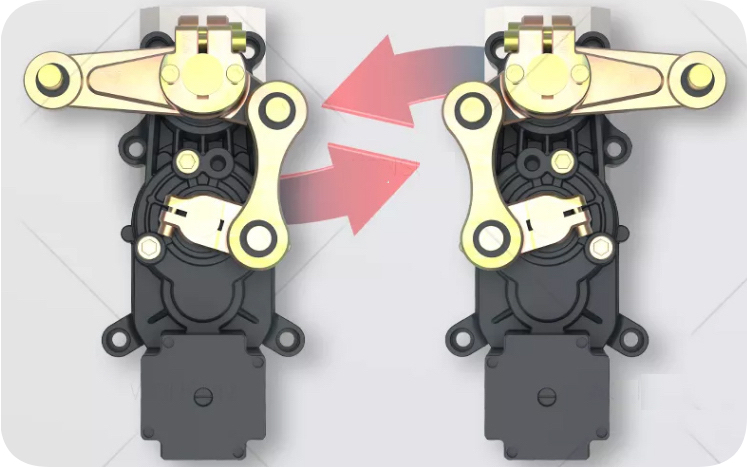

    Arm Direction Is Exchangeable Easily


    In the past you have to keep stock for barriers with different arm direction either left or right, because different sites may require different arm direction. But now you can change the boom direction easily at site without replacing any parts.

  • Barrier Gate System

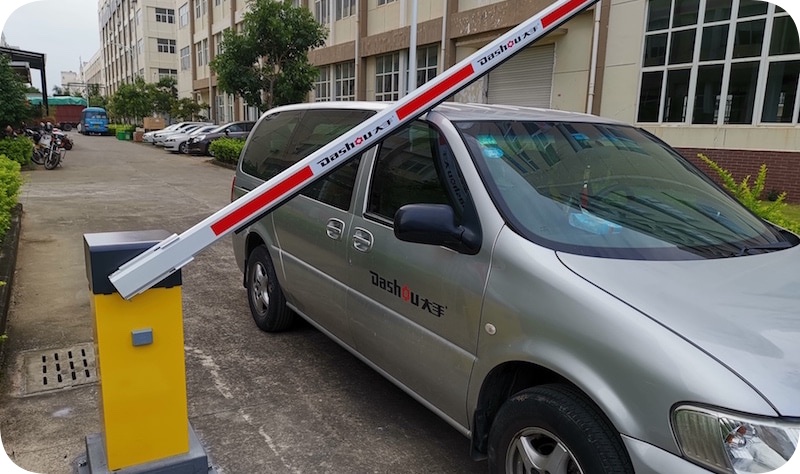

    Arm Swing Out To Protect Arm & Vehicle


    Arm will swing out by 90 degree if it was hit by a vehicle, this will avoid breaking the boom, and minimize damage to the motor and vehicles. This function for the barrier gate with straight arm only.


  • Arm Auto-reverse On Obstacles For Safety


    While barrier arm moving down, it will automatically reverse if it hit with an obstacle such as a car or pedestrian, this will protects the car or person. The sensitivity is adjustable. This function is not working when the angle is <9°both in vertical and horizontal position.

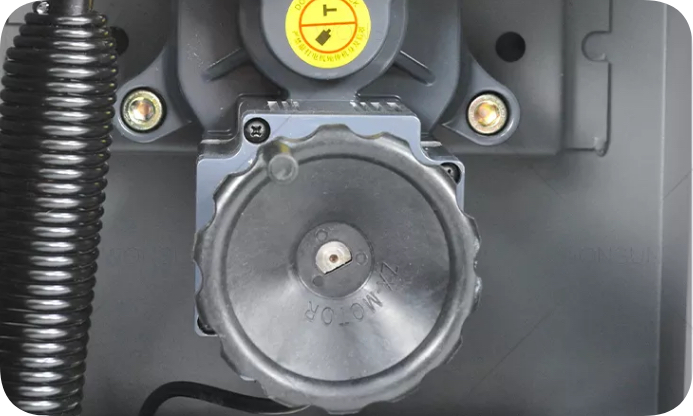

    Manually Control In Case of Power Failure


    If power supply is suddenly off, you can manually open and close the barrier gate by the black lever. Also the boom arm can be manually locked in any position between horizontal and vertical by this level.

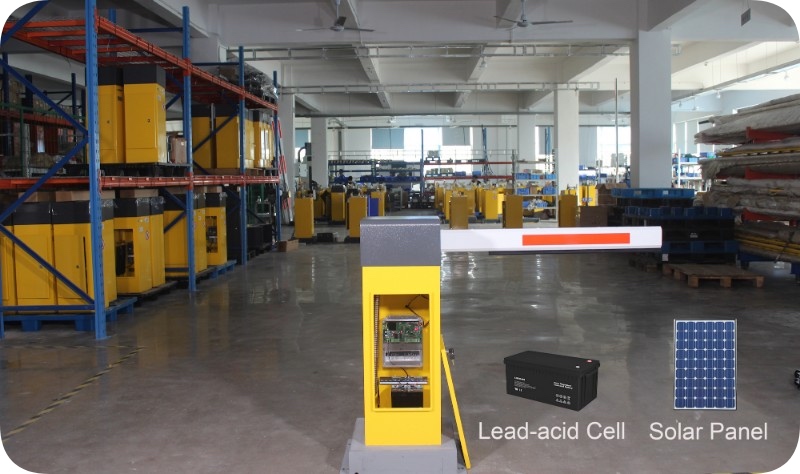

    Backup Solar Panel or Lead-acid Cell


    Thanks to DC motor technology, the boom barrier can be powered by solar or lead-acid cell as back up power supply in emergency. Especially solar power is environment friendly for the earth thus for the human.

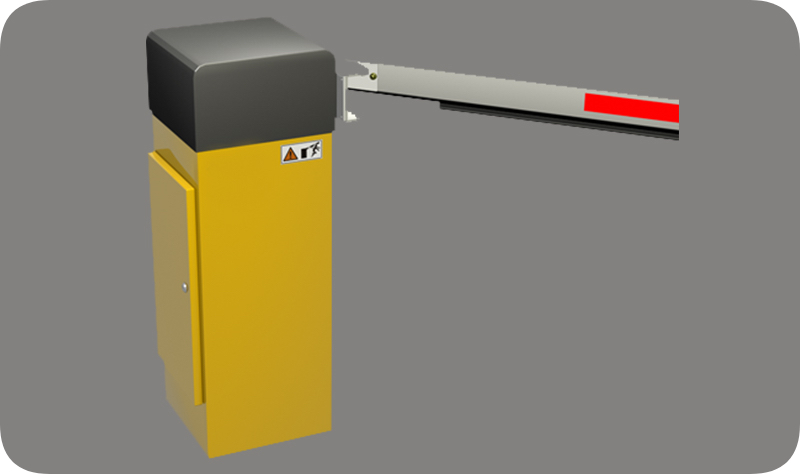

  • Arm automatically open when power is off


    Whatever the barrier arm in any position, arm will automatically open up when the power is down. This is very helpful for a unattended car park. When power is down, vehicles can leave the parking lots without waiting for someone to manually open barrier. Off course this function can be shut off. See video on the right side


Other Features


  • Automatically close in given time (Programmable)

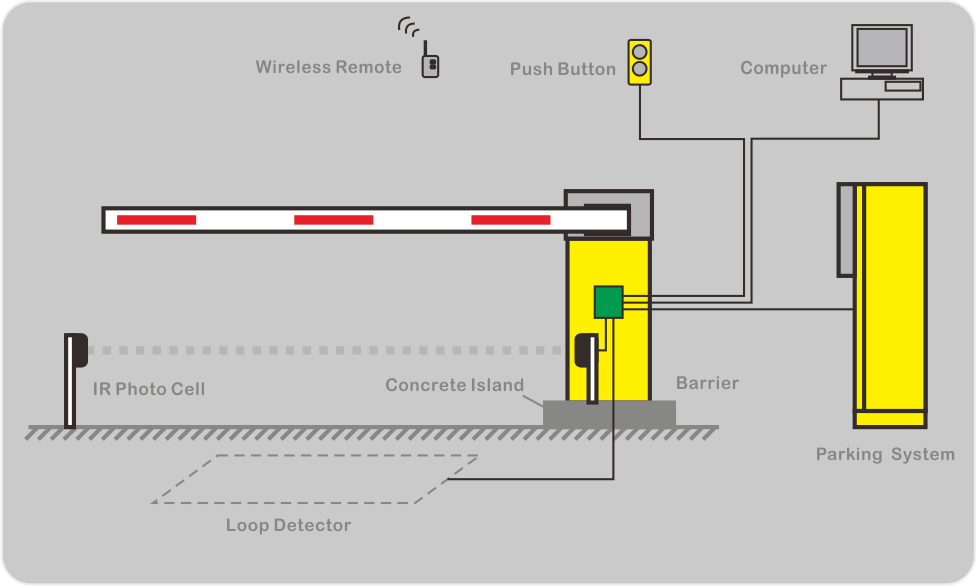

  • Automatically close or open by loop detector


Above feaures & functions which marked in ∗ are optional

For more features & functions, Pease refer to the brochure.


Opening/closing time 0.9s, or 2~3s adjustable, or 3~6s. adjustable
Power Supply Input AC220V/110V,50/60HZ
Motor 100W brushless DC24V motor
Duty Cycle Less than 100%
MTBF (Meantime Before Failure) 5 million cycles
Boom Max. 6 Mtr. 86*44mm aluminum alloy octagonal boom
Boom Telescopic straight arm for options
Controller PWM variable frequency servo controller board
Remote distance 20~50mtr.
Communication interface RS 485
Balance Spring No spring used (Except fence arm barrier)
Housing material 1.5mm cold-roller sheet
Housing Painting Powder coating, 10 years without rust,shedding and fading
IP level IP 54
Housing size (H*W*D) 950mm×320mm×329mm
Package size (H*W*D) 1100mm×480mm×430mm
G.W 48KG
Operating temperature -30°c -70°c
Humidity 10%-95%
