Customizable RFID Based Car Parking Access Revenue Control System

» Web-based Parking Management Software

» TCP/IP based RFID Parking Control System

» Customizable Display & Voice Broadcast

» Customizable Parking Coupon & Receipt

» API for Integration with your own system

» Multiple Customizable Parking Rates

» Parking Report Helps you Increase Sales

  • Item NO. : V32-810F Pay At Exit

  • Order(MOQ): 1 Set

  • Color : Yellow or customized

  • Lead Time : 5~7 working days

  • Warranty : 1 year

  • OEM : Available

  • Features
  • Specifications
  • Video


Customizable RFID Based Car Parking Access Revenue Control System


V32-810F Pay at Exit is a TCP/IP based Parking Access Revenue Control System (PARCS) for managing pay-at-exit facilities, for both temporary users and regular users. Temporary users take a RFID card at entry, while regular users swipe RFID card to get access to the car park. It is ideal parking solution for car parks such as shopping center, airport, hotel, CBD and residential community etc.


Parking Revenue Control System



System Components (V32-810F Pay At Exit)


① Entry Station ④ CCTV Cameras *
② Exit Station ⑤ Parking Space Display *
③ Barrier Gate ⑦ Parking Fee Display *
⑥ Computer
⑧ Loop coil Traffic Lights *
  Voice Prompt *
Web-based software Intercom *
Charging software Cash Box *
Central Server Receipt Printer *
Card reader for charging Items marked * are optional


Parking Access Revenue Control System


How does Parking Revenue Control System works---For temporary users (Visitors)


» A temporary user drives his car to entrance, the car triggers Loop Coil of Entry Station
» He gets an EM-ID or Mifare-IC card from Entry Station
» Entry barrier gate automatically opens, and then closes automatically after the vehicle passed
» The temporary user drives to the payment station at exit, and pass the card to the cashier
» The cashier validate the card, payment details will be shown on the screen of exit station
» The visitor pays cash for parking, then the cashier open the exit barrier for him
» Exit barrier closes automatically after the vehicle passed




How does RFID Based Parking System works---For regular users (Members)

» A regular user drives his car to the entrance, the car triggers loop coil of Entry Station
» He shows proximity card to the card reader which is built-in Entry Station
Or long range RFID tag on windshield was detected by long range RFID Reader
» Boom barrier opens automatically, and then closes automatically after the vehicle passed
» Same will be happening at exit

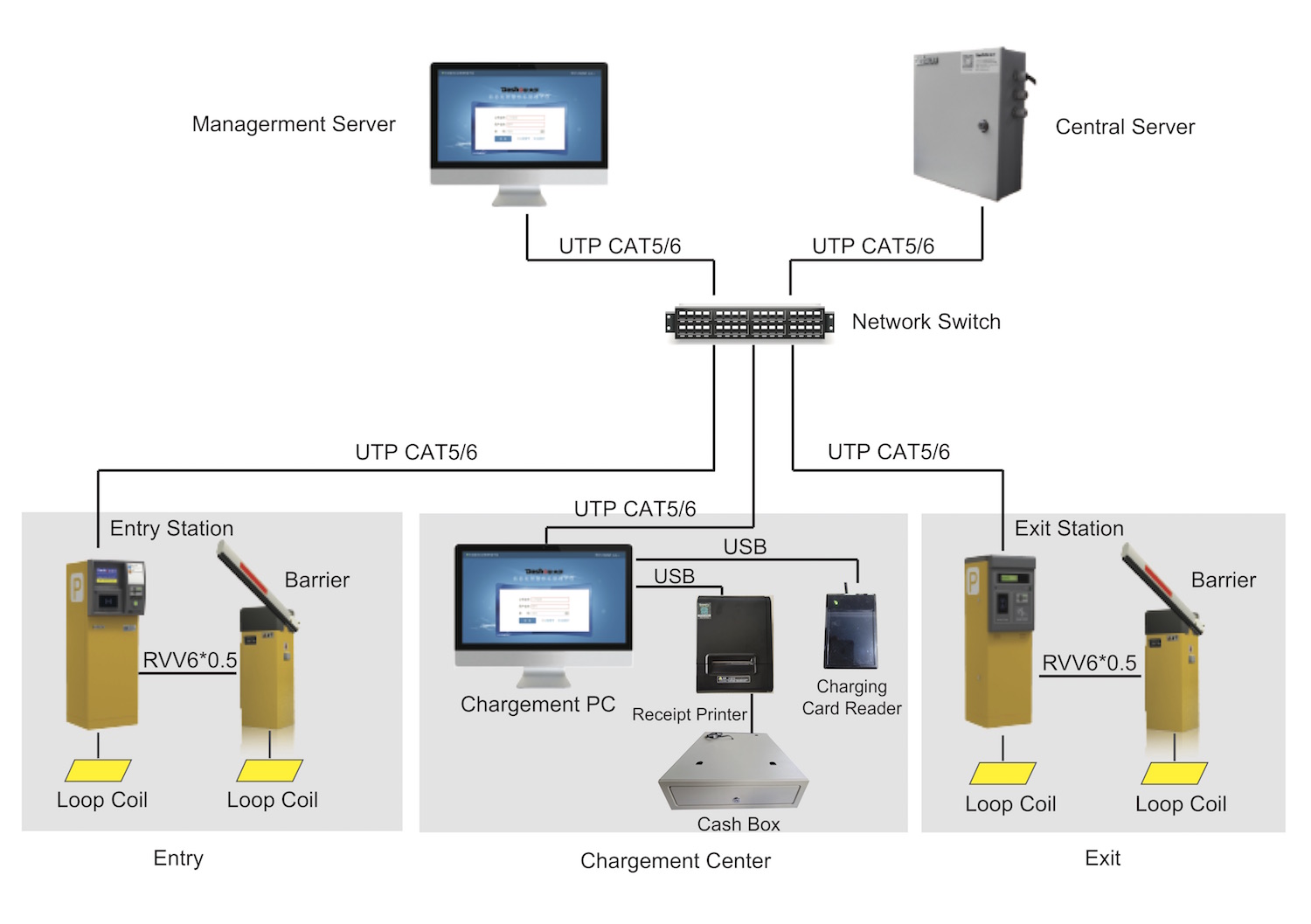

RFID Card Parking Management System Diagram (Pay At Exit)


RFID Parking System



  • RFID Parking Management System

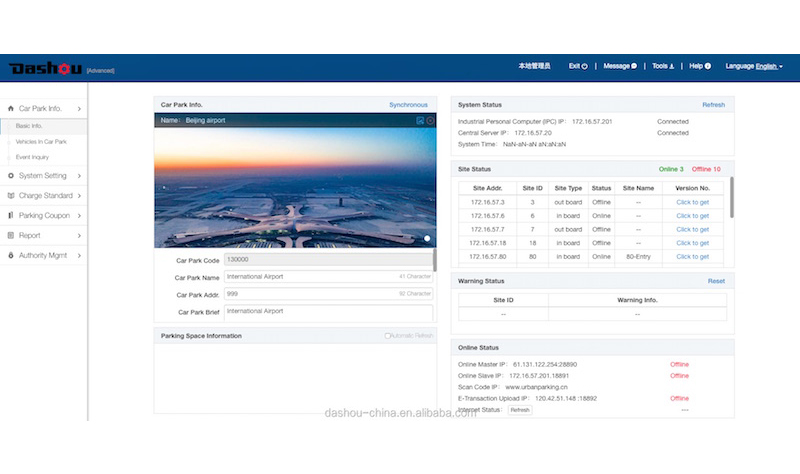

    Web-based Management Software


    Web-based management software was pre-installed into the Central Server before delivery, which helps you remotely and centrally manage multi parking lots anywhere and anytime

  • RFID Based Parking System
    API for Easy Integration
    With the open Dashou system and its flexible interfaces (API provided), you can easily and securely integrate Dashou RFID parking system with the third party system such as APP on cellphone
  • RFID Based Car Parking System

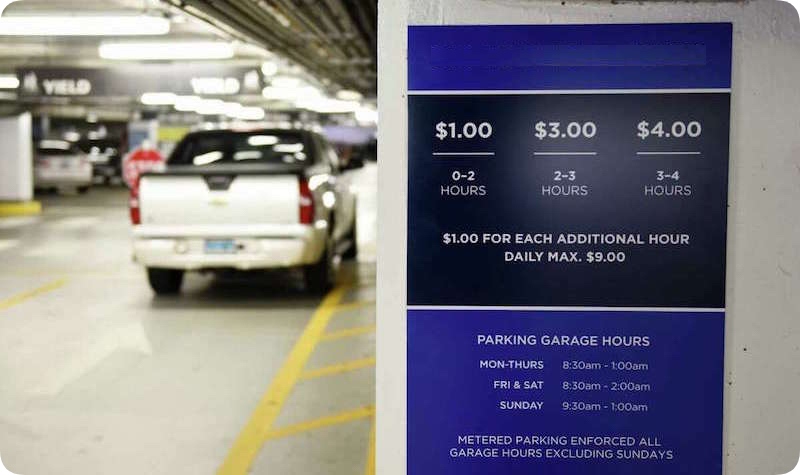

    Customizable Parking Rate
    The software provides several customized charging standards, each comprises of several sub items such as free time, charging rates during different periods, charging fee during the night etc. Customized charging standards matches all your charging requirements.
  • RFID Based Parking Management System

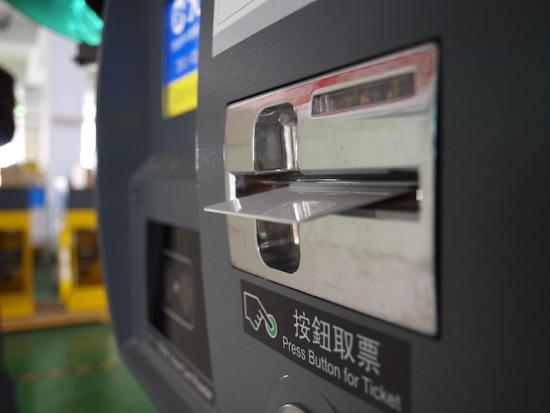

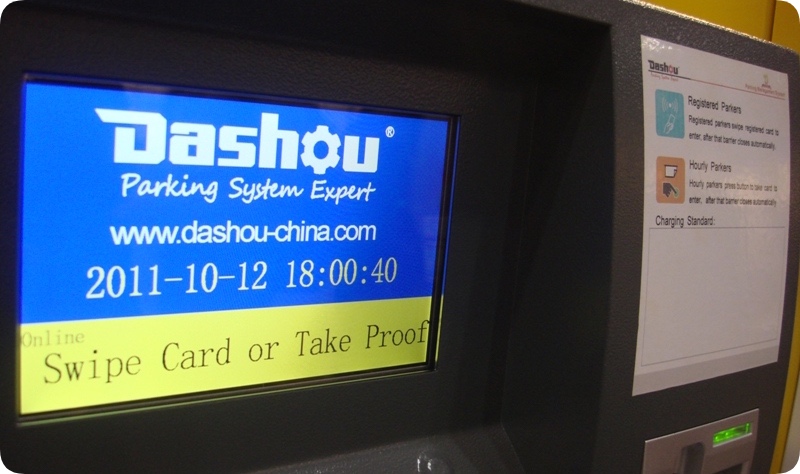

    Customizable Screen & Voice Prompt
    The entry & exit station can be equipped with 7 inch TFT screen on which detailed operation and system info. are simply and friendly shown. Voice Prompt gives a warm-hearted welcome and operation guide to parkers. Both screen and voice prompt can be customized.
  • Proximity Card Parking System

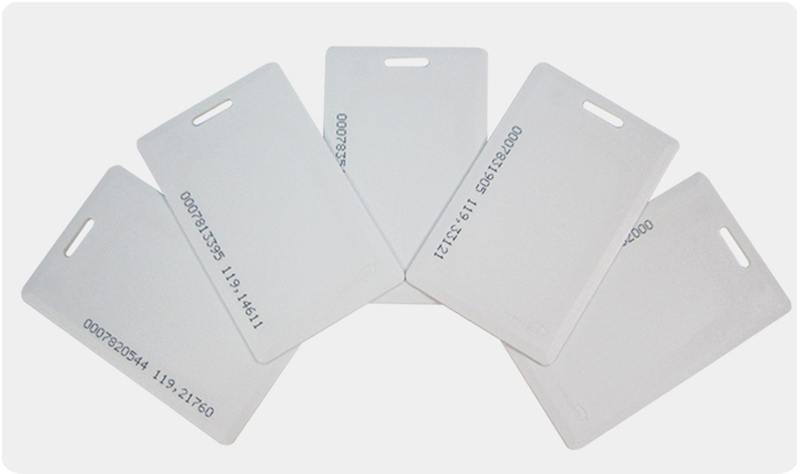

    Proximity card or long range RFID

    This RFID parking system can handle all types of card, no matter of proximity card (EM-ID or Mifare-IC) or long range RFID tag. Reading distance for proximity card is around 5~10cm, while for long range RFID tag is 3~15m

  • Parking Lots Management System

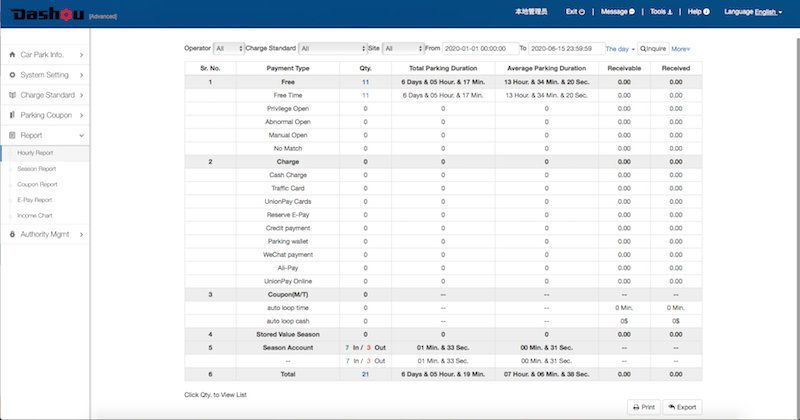

    Report Helps you Increase Sales
    Dashou report gives you access to all datas such as turnover, number of parking customers, etc., for single or multple facilities. Reports helps you understand how to improve the operation quality and therefore increase your sales, as well as for your internal auditing, and to analyze customers behavior to steer the development of customized products.


  • Car Parking Management Solution



    Customizable Parking Receipt


    By connecting a printer to charging PC, you can print out receipt which can be customized on the charging software upon your unique requirements, even receipt required by your tax bureau.

  • Parking System Coupon
    Customizable Parking Coupon
    Some shopping malls issue parking coupons to customes for long term relationship. Different types of coupon can be created on the parking management software and sold to the shop or end users to deduct parking fee.

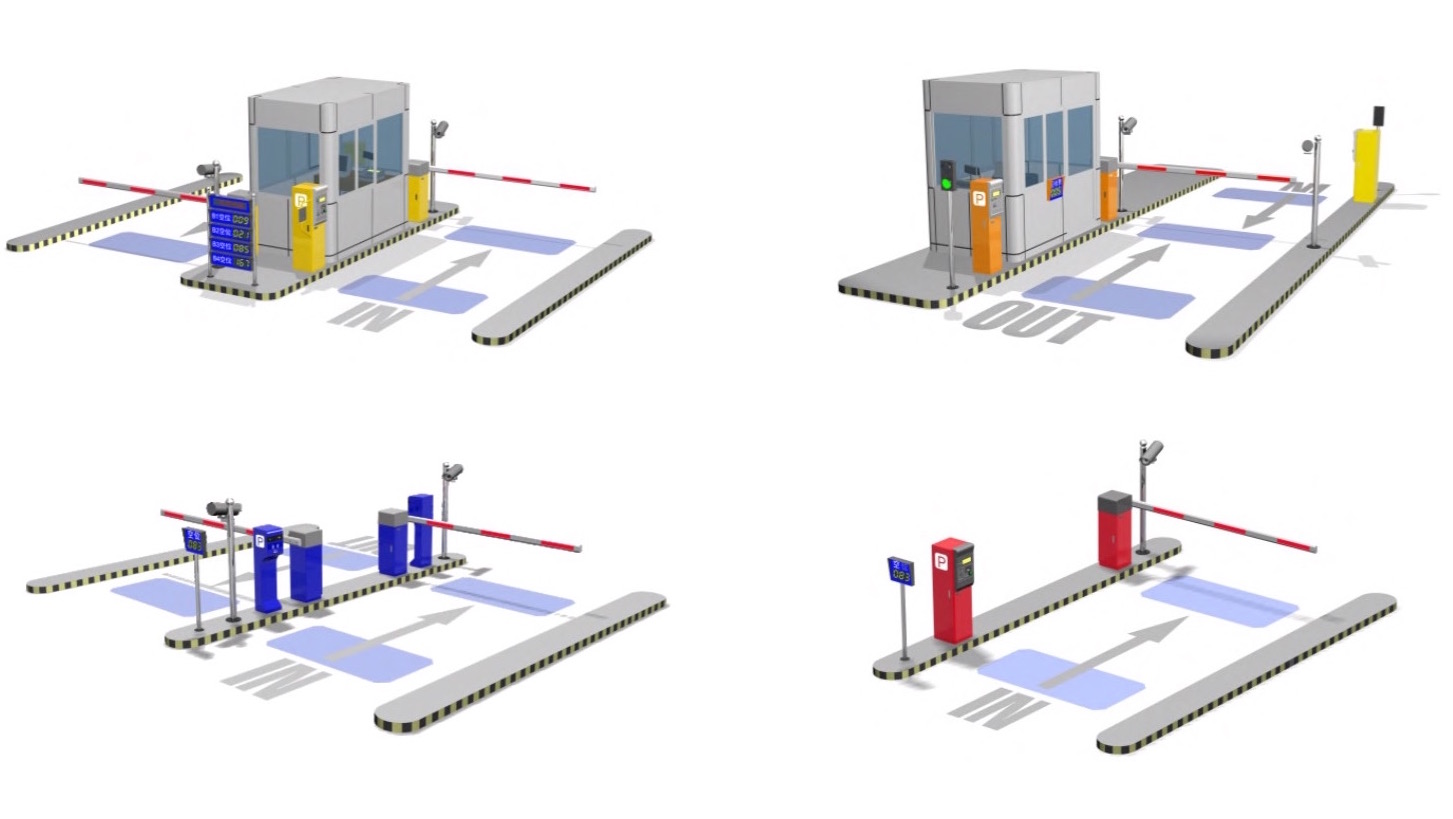

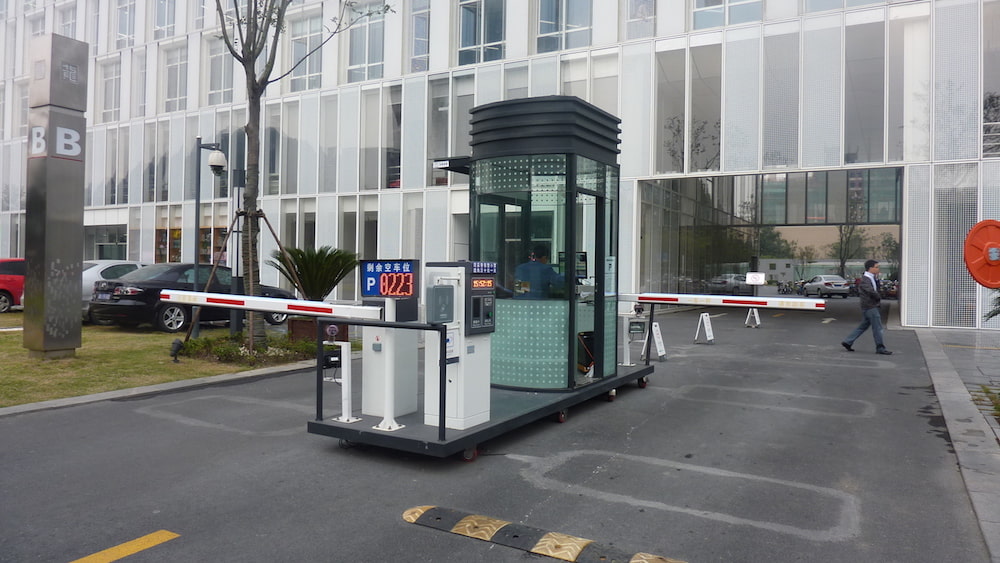

Various Installing Environment


Car Park Management System
