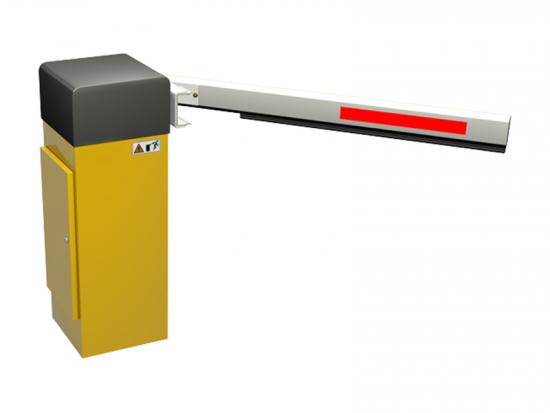

Brushless DC Motor 0.9 Second High Speed Boom Barrier Gate

» The best choice for toll gate cash lane

» Max. 3m boom arm, 0.9 Sec. speed

» Free-maintenance brushless DC motor

» 10 million MTBF & 100% duty cycle

» 7*24 hrs continuously work with long life

» Control & confirgure barrier on cellphone

» Ethernet interface for easy integration

» Boom arm is bidirectional

» Manually control in case power off

  • Item NO. : PAB-BD-HSN

  • Order(MOQ): 1 Set

  • Color : Yellow or customized

  • Lead Time : 3~5 working days

  • Warranty : 1 year

  • Certificates : CE

  • OEM : Available

  • Features
  • Specifications
  • Video

Brushless DC Motor 0.9 Second High Speed Boom Barrier Gate

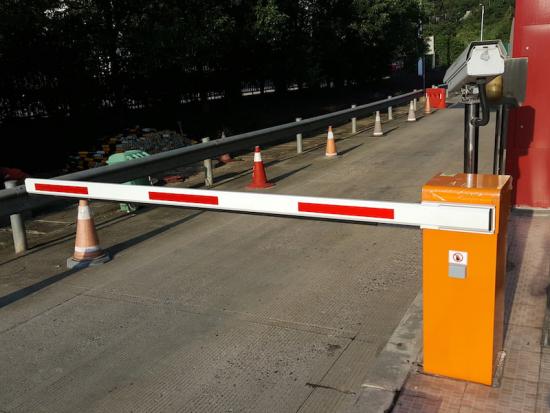

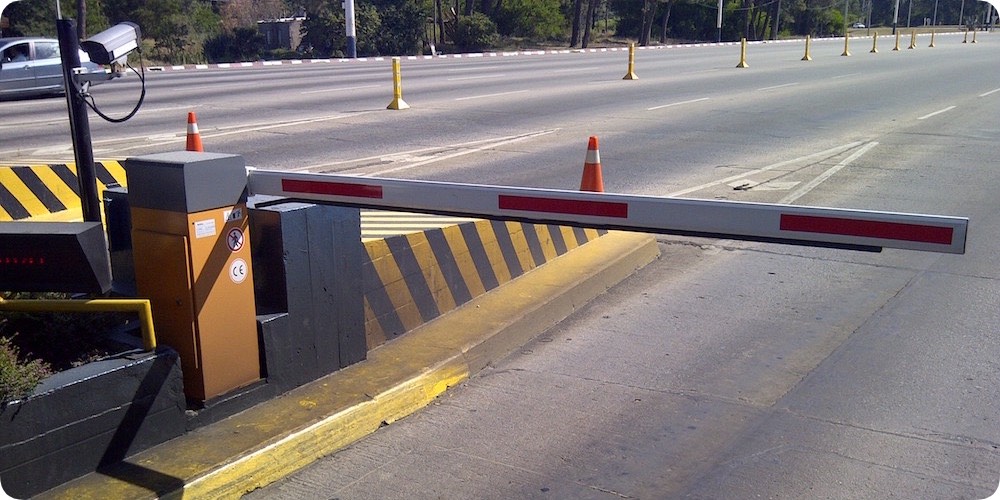

Specially designed for highway toll gate cash lane



High Speed Barrier





  • Control & Confirgure Barrier On Smartphone



    With the help of WIFI technology, from your cellphone you can open and close the high speed barrier gate, and confirgure the barrier such as adjustament of opening/closing time etc,. Dashou App need to be installed in the cellphone, and Dashou WIFI module should be connected to controller of the barrier.

  •
  • High Speed Boom Gate

    Ethernet Interface for System Integration



    In the new times of "Internet of Everything", barriers should be connected as well. The high speed boom barrier provides TCP/IP RJ45 port, which allow you to integrate Dashou barrier with your own system, thus you can control and even remotely monitor the barrier by your own system from anywhere. Dashou Ethernet module need to be connected to the barrier controller, and Dashou will provide you SDK.

  •
  •
  • Solar Powered Boom Barrier

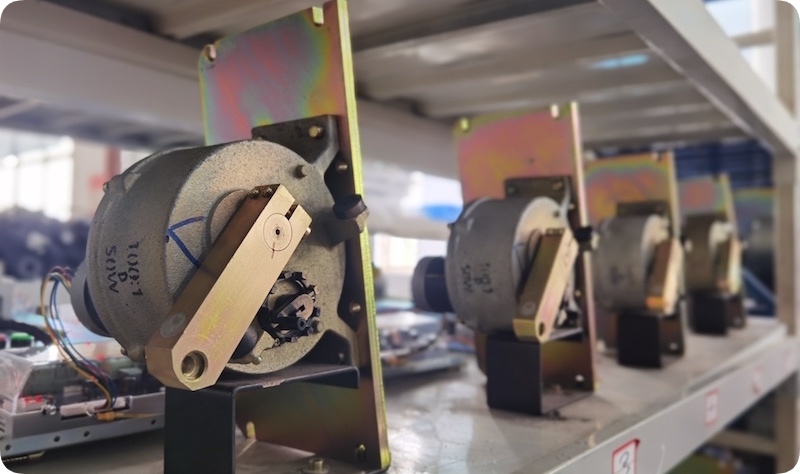

    10 Million MTBF Free-maintenance Brushless DC Motor

    This barrier adopts free-maintenance brushless DC motor which has incredible 10 million MTBF and 100% duty cycle, this helps the high speed automatic barrier continuously work well at 24*7 hours; Max.175W low consumption of the motor is environment friendly but ensures super strong torque outputs.

  •
  • 0.9 Second High Speed Barrier

    Operation Status Self-Check & Report Fault



    High speed parking barrier can automatically check its operating status by itself and display errors code on LED tube when any fault occurred. This helps you quickly find out problem without delay, and solve it with error codes and its meanings which can be found in the User Manual.



  •
  •

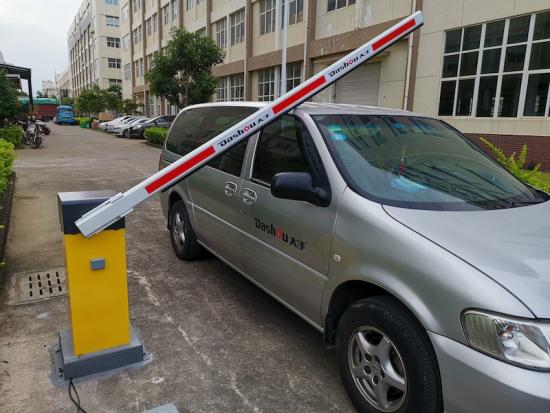

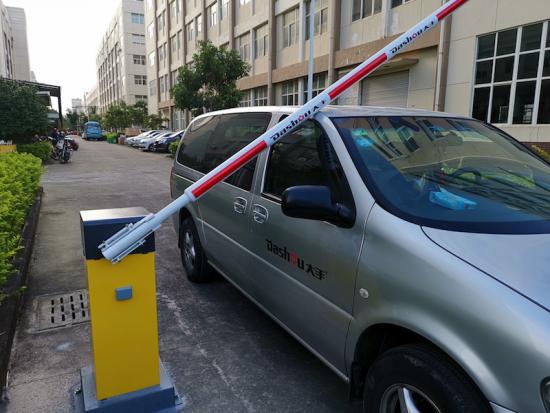

  • Boom Auto-reverse On Obstacles For Safety



    While closing down, boom arm will reverse automatically and immediately when it smash a vehicle or pedestrian, this protects them. The sensitivity is adjustable. This function won`t work if the angle is <9° both in vertical and horizontal position. View the video on the left side

  •

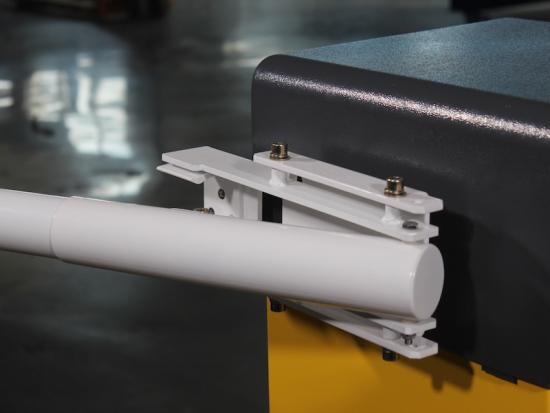

  • Arm Swing Out Protect Arm & Vehicle



    Boom arm will swing out 90 degree if a vehicle hit it, this protects both vehicle and boom from damage, and avoid any conflict between the driver and car park owner. It is optional and yourself can easily add swing-off module to the existing barrier without swing-off function. View video on the left side



  • Boom Direction Can be Exchangeable Easily



    In the past you have to keep stock for 0.9 second barrier gate with different arm direction because different projects may require barriers in different arm direction. But thanks to updated technology, now you can change the arm direction easily at site without replacing any parts. View video on the right side

  •
  • Boom Automatically Open When Power Failed ∗



    Whatever the boom arm in any position, it will automatically open up fully when the power is down. This is very useful for a unmanned car park, if the power failed vehicles can exit without waiting for someone to manually open barrier. This function can be shut down. See video on the right side



Other Features



  • Alarm when arm swing off
  • Automatically close in given time (adjustable)
  • Automatically close by loop detector
  • Solar panel or lead-acid cell for backup power supply



Above feaures & functions which marked in ∗ are optional

For more features & functions of 0.9 second solar powered barrier gate, Pease refer to the brochure.



High Speed Barrier Gate



Opening/closing time 0.9 sec.
Boom Arm Max. 3mtr octagonal or round boom
Power Supply Input AC 85~264V,50/60HZ
Motor 50W DC24V brushless servo torque motor
Duty Cycle 100%
MTBF (Meantime Before Failure) 10 million cycles
Controller 80C51 MCU, 20MHz, PWM variable frequency servo controller board
Commnication interface RS 485 or TCP/IP
Remote distance
20~50mtr.
Housing material 2mm cold-roller sheet
Housing Painting Powder coating, 10 years without rust,shedding and fading
IP level IP 54
Housing size (H*W*D) 950mm×320mm×329mm
Package size 1100mm×480mm×480mm
G.W 46KG
Operating temperature -40°c -75°c
Humidity 10%-95%
