12m Supper Long Rising Arm Barrier Gate with High Wind Resistance

12m Supper Long Rising Arm Barrier Gate with High Wind Resistance

•

  TCP/IP Interface for Easy Integration ∗



  The super long pole barrier controller has TCP/IP RJ45 interface, which allow you to integrate the barrier with your own system easily, thus you can control and remotely monitor the barrier status by your own system from anywhere. *Dashou Ethernet module should be connected to the barrier controller, and communication protocol will be provided by Dashou

•
•

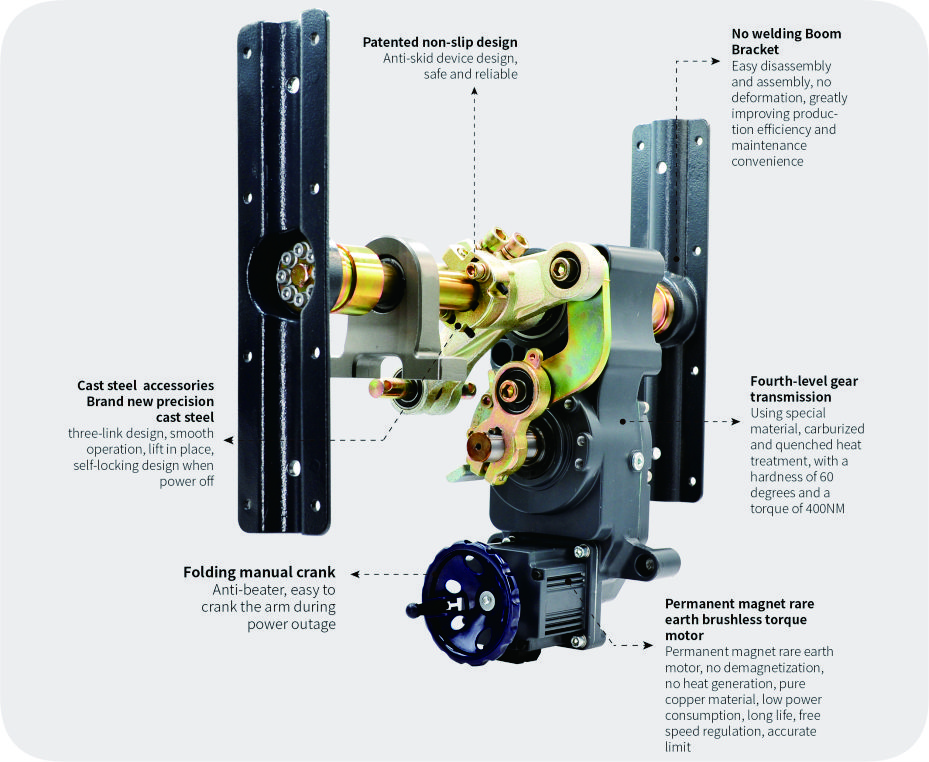

  10 Million MCBF Free-maintenance DC Motor



  Free-maintenance DC24V brushless motor ensures more than 10 million cycles MCBF long life span; Meanwhile 100% duty cycle helps the car barrier gate continuously work well at 24*7 hours; Max.250W low consumption makes the barrier environment friendly but outputs strong torque.

•
•
•
•

  Automatically Check Status & Report Error



  Vehicle Barrier Gate system will automatically check its operation status by itself during working, and errors code will be shown on the LED tube if any problem occurred. This helps you quickly find out the problem and fix it accordingly. List of error code will be found on the User Manual.



•
•
• Arm Auto-reverse On Obstacles For Safety



  While barrier arm moving down, it will reverse automatically and immediately if it hit a car or pedestrian, which protects the car or person. The sensitivity is adjustable. This function is not working when the angle is <9°both in vertical and horizontal position. View the video on the right side

•
•

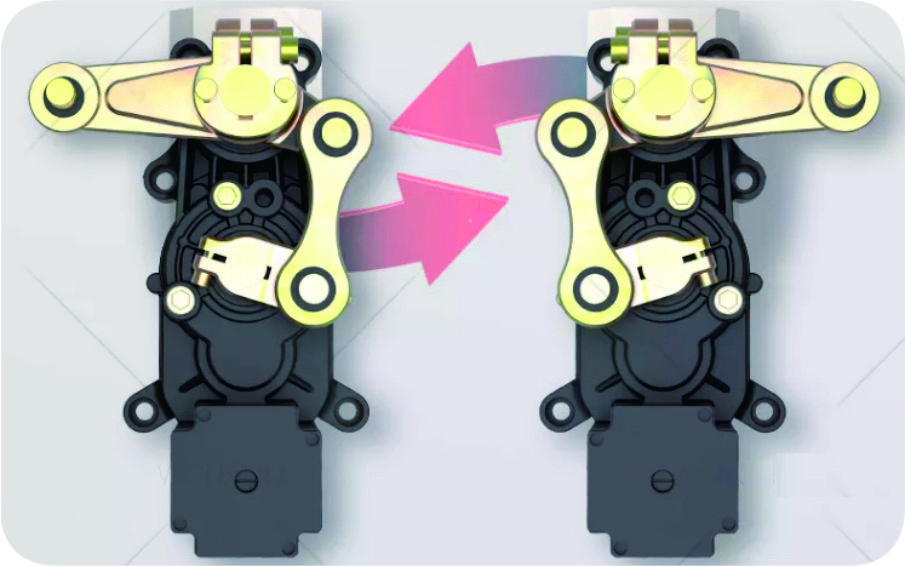

  Arm Direction Is Exchangeable Easily



  In the past you have to keep stock for barriers with different arm direction because different sites may require different arm direction. But now you can change the arm direction easily at site without replacing any parts. View video on the right side



• Arm automatically open when power off ∗



  Whatever the barrier arm in any position, arm will automatically open up fully if the power is off. This is very useful for a unmanned parking lots, when power is down, vehicles can leave the car park without waiting for someone to manually open barrier. Off course you can shut down this function. See video on the right side

•
•

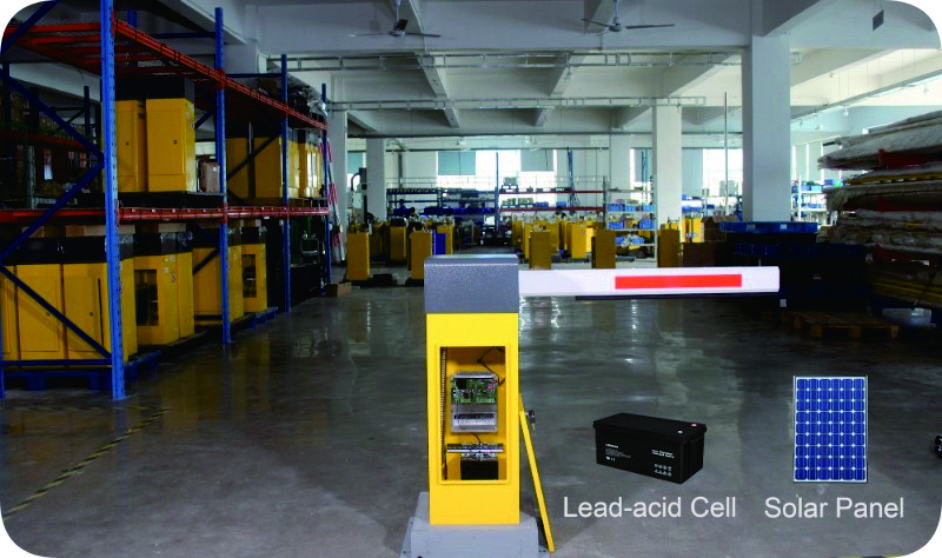

  Backup Solar Panel or Lead-acid Cell∗



  A boom arm barrier with DC motor can be powered by solar system or storage battery for back up power supply. Especially solar power is environment friendly which is good for earth and the humanbeeing.

Other Features

• Manually Control In Case of Power Failure
• Automatically close in given time (Programmable)
• Barrier decelerates in the end of opening and closing to avoid shaking
• Mechanical self-locking the boom, can not lift up the boom by hand
• Automatically close or open by loop detector ∗
• Safety for vehicle--- Anti-hit by Loop Detector∗
• Safety for vehicle & pedestrian— Anti-hit by IR photocell ∗
• Enable or disable “Always-open mode” on remote
• Count opening & closing times totally, or count opening or closing times only
• Fire linkage signal input function
• Loop detector normally open and normally closed function
• IO port single key cycle up and down function

Above feaures & functions which marked in ∗ are optional

For more features & functions, Pease refer to the brochure.
