10 Million MTBF DC Motor Car Parking Barrier Gate

» The 5G Smart Parking Barrier Gate

» Max. 6m arm, 0.9~6 Sec. adjustable

» Control & program barrier on smartphone

» TCP/IP interface for easy integration

» Free-maintenance brushless DC motor

» 10 million MTBF and 100% duty cycle

» Boom direction is exchangeable

» Manually control when power is off

  • Item NO. : PAB-BD Beyond

  • Order(MOQ): 1 Set

  • Color : Yellow or customized

  • Lead Time : 3~5 working days

  • Warranty : 1 year

  • Certificates : CE

  • OEM : Available

  • Features
  • Specifications
  • Video



10 Million MTBF DC Motor Parking Barrier Gate



The 5th generation smart barrier PAB-BD BEYOND adopts free-maintenance DC brushless motor and PWM variable frequency servo controller, fast but smooth moving. Incredible 10 million MTBF and 100% duty cycle makes it continuously work at 7*24 hrs with long life span. Its boom direction is exchangeable, boom type can be changed at site without replacing any parts. Opening/closing time 0.9~6s adjustable, Max.6m boom. Check all models cover different arm type, different arm lenght and different speed in below table:

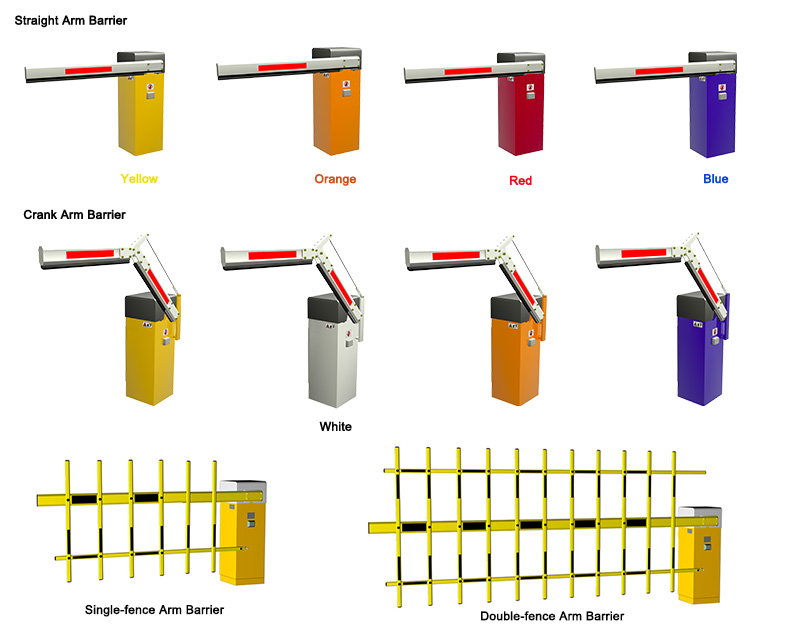

Parking Barrier Gate





Model No.

Opening/closing time Max. Arm lenght Arm Type

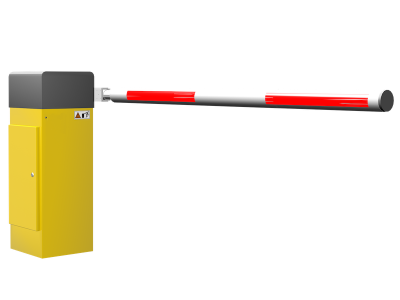

PAB-BD-HSN 0.9s 3m

Straight arm (Octagonal or round)

PAB-BD-NSN 2s 4m

Straight arm (Octagonal)

3s 5m
4~6s 6m

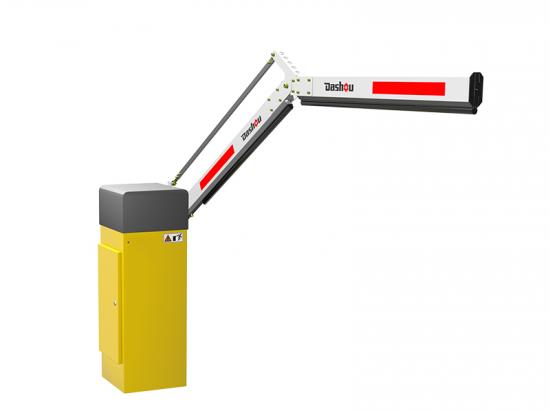

PAB-BD-HCN 1s 3.5m

Articulated arm (Octagonal or round)

PAB-BD-NCN 2~3s 4m

Articulated arm (Octagonal)

4~6s 5m

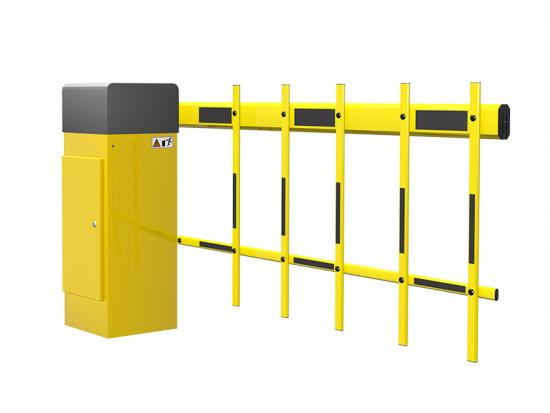

PAB-BD-HFN 3s 3m Single fence arm
PAB-BD-NFN 4~6s 4.5m Single fence arm
PAB-BD-NFN2 4~6s 4m Double fence arm





  • Control & Program Barrier By Cellphone



    Thanks to WIFI technology, from your cellphone you can control the parking barrier gate, and program the barrier such as opening/closing time setting and other parameters setting etc. *Dashou App should be installed into your cellphone, also Dashou WIFI module shall be connected to barrier controller board. View the video on the left side

  •
  • Car Parking Barrier Gate

    TCP/IP Interface for Easy Integration



    The electric barrier gate controller has TCP/IP RJ45 interface, which allow you to integrate the barrier with your own system easily, thus you can control and remotely monitor the barrier status by your own system from anywhere. *Dashou Ethernet module should be connected to the barrier controller, and communication protocol will be provided by Dashou

  •
  •
  • Automatic Barrier Gate

    10 Million MTBF Free-maintenance Brushless DC Motor

    Free-maintenance DC24V brushless servo torque motor ensures more than 10 million cycles MTBF long life span; Meanwhile 100% duty cycle helps the vehicle barrier gate continuously work well at 24*7 hours; Max. 50W super low consumption of the motor means less power but outputs super strong torque

  •
  • Barrier Gate System

    Automatically Check Status & Report Error



    Barrier Gate system will automatically check its operation status by itself during working, and errors code will be shown on the LED tube if any problem occurred. This helps you quickly find out the problem and fix it accordingly. List of error code will be found on the User Manual.



  •
  •
  • Arm Auto-reverse On Obstacles For Safety



    While barrier arm moving down, it will reverse automatically and immediately if it hit a car or pedestrian, which protects the car or person. The sensitivity is adjustable. This function is not working when the angle is <9°both in vertical and horizontal position. View the video on the left side

  •
  • Arm Swing Out To Protect Arm & Vehicle



    Arm will swing out by 90 degree if it was hit by a car, this will protect both car & boom arm from damage. It is optional and you can easily add swing-off module to a barrier without swing-off function. View video on the left side



    This function for straight arm barrier only.



  • Arm Direction Is Exchangeable Easily



    In the past you have to keep stock for barriers with different arm direction because different sites may require different arm direction. But now you can change the arm direction easily at site without replacing any parts. View video on the right side

  •
  • Arm automatically open when power off



    Whatever the barrier arm in any position, arm will automatically open up fully if the power is off. This is very useful for a unmanned parking lots, when power is down, vehicles can leave the car park without waiting for someone to manually open barrier. Off course you can shut down this function. See video on the right side



Other Features



  • Alarm when arm swing off
  • Automatically close in given time (Programmable)
  • Automatically close or open by loop detector
  • Solar panel or lead-acid cell for backup power supply
  • Different types of arm can be exchanged without replacing any part



Above feaures & functions which marked in ∗ are optional

For more features & functions, Pease refer to the brochure.



Barrier Gate Operator



Opening/closing time 0.9~6 sec. adjustable
Power Supply Input AC85~264V,50/60HZ
Motor 50W DC24V brushless servo torque motor
Duty Cycle 100%
MTBF (Meantime Before Failure) 10 million cycles
Controller 80C51 MCU, 20MHz, PWM variable frequency servo controller board
Communication interface RS 485 or TCP/IP
Remote distance
20~50mtr.
Housing material 2mm cold-roller sheet
Housing Painting Powder coating, 10 years without rust,shedding and fading
IP level IP 54
Housing size (H*W*D) 950mm×320mm×329mm
Package size 1100mm×480mm×430mm
G.W 46KG
Operating temperature -40°c -75°c
Humidity 10%-95%



Model No.

Open/close time Max. Arm lenght Arm Type
PAB-BD-HSN 0.9s 3m

Straight arm

(Octagonal or round)

PAB-BD-NSN 2s 4m

Straight arm (Octagonal)

3s 5m
4~6s 6m
PAB-BD-HCN 1s 3.5m

Articulated arm

(Octagonal or round)

PAB-BD-NCN 2~3s 4m

Articulated arm

(Octagonal)

4~6s 5m
PAB-BD-HFN 3s 3m Single fence arm
PAB-BD-NFN 4~6s 4.5m
PAB-BD-NFN2 4~6s 4m Double fence arm
