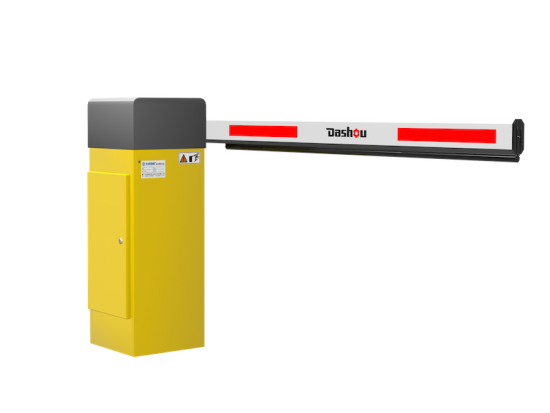

1.5~6s Springless Barrier Gate with 10 Million MCBF

1.5~6s Springless Barrier Gate with 10 Million MCBF

•

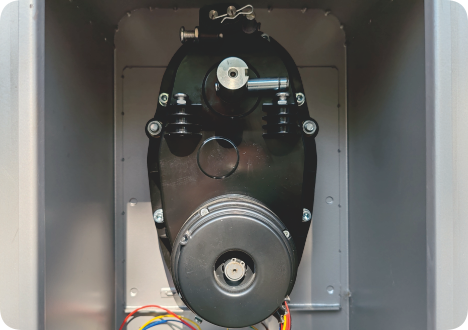

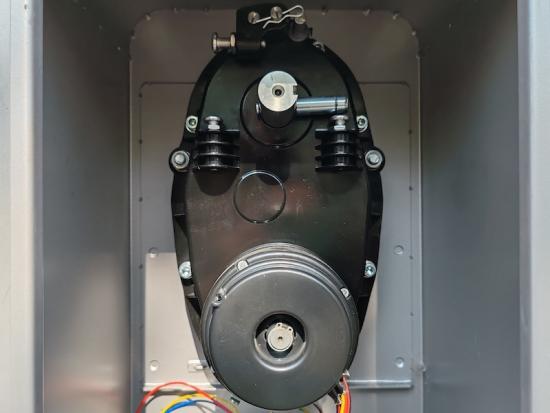

  Free-maintenance DC Servo Motor

  10 million MCBF & 100% duty cycle



  Free-maintenance DC24V brushless servo motor and 20CrMnTi precision ground helical gear ensures more than 10 million cycles MTBF long life span; High transmission, efficiency and high torque bearing capacity etc.,100% duty cycle helps the springless barrier gate continuously work well at 24*7 hours; Max. 300W super power helps the barrier outputs super strong torque with high stability.

•
•

  TCP/IP Interface for Easy Integration ∗



  The spring-free barrier gate controller has TCP/IP RJ45 interface, which allow you to integrate the barrier with your own system easily, thus you can control and remotely monitor the barrier status by your own system from anywhere. *Dashou Ethernet module should be connected to the barrier controller, and communication protocol will be provided by Dashou

•
•
•

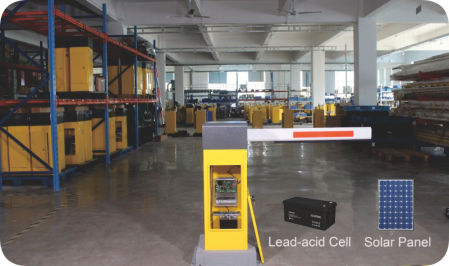

  Backup Solar Panel or Lead-acid Cell



  DC motor drived motor can be powered by solar system or lead-acid cell for back up power supply, especially solar power is environment friendly which is good for the earth.

•
•

  Automatically Check Status & Report Error



  Non-spring boom gate will automatically check its operation status by itself during working, and errors code will be shown on the LED tube if any problem occurred. This helps you quickly find out the problem and fix it accordingly. List of error code will be found on the User Manual.



•
•
• Arm Auto-reverse On Obstacles For Safety



  While barrier arm moving down, it will reverse automatically and immediately if it hit a car or pedestrian, which protects the car or person. The sensitivity is adjustable. This function is not working when the angle is <9°both in vertical and horizontal position. View the video on the left side

•
• Arm Swing Out To Protect Arm & Vehicle ∗



  Arm will swing out by 90 degree if it was hit by a car, this will protect both car & boom arm from damage. It is optional and you can easily add swing-off module to a barrier without swing-off function. View video on the left side



  This function for straight arm barrier only.

•

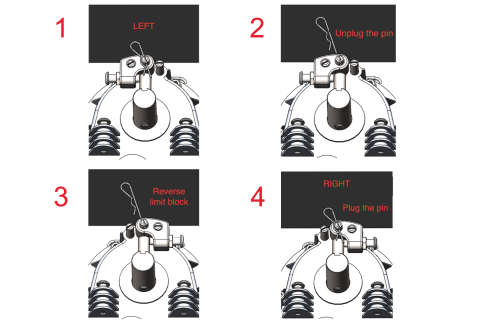

  Arm Direction Is Exchangeable Easily



  In the past you have to keep stock for barriers with different arm direction because different sites may require different arm direction. But now you can change the arm direction easily at site without replacing any parts and without any tool in 30 seconds.

•
• Arm automatically open when power off ∗



  Whatever the barrier arm in any position, arm will automatically open up fully if the power is off. This is very useful for a unmanned parking lots, when power is down, vehicles can leave the car park without waiting for someone to manually open barrier. Off course you can shut down this function. See video on the right side

Other Features

• Boom automatically open up fully in case of power failure
• Suitable for various pole types: straight pole within 6 meters, folding arm pole within 5 meters, two-rail fence pole within 5 meters.  Different types of pole can be changed without replacing any parts
• The speed of the raising and lowering is 1.5~6 seconds adjustable, which is self-adaptive according to the pole type and length: the lighter the pole, the faster it is. For example: the adaptive speed of a straight pole within 4 meters is 1.5 seconds, and the adaptive speed of a 5 meter fence pole is 6 seconds. If the adaptive effect is not ideal, it can be set manually
• Barrier decelerates in the end of opening and closing to avoid shaking
• Manually control in case of power failture
• When power off, the motor brake device will lock itself to prevent the arm from falling down and hitting the car due to gravity.
• Mechanical self-locking the boom, can not lift up the boom by hand
• Automatically close in given time (Programmable)
• Automatically close or open by loop detector ∗
• Solar panel or lead-acid cell for backup power supply ∗
• Different types of arm can be exchanged without replacing any part

Above feaures & functions which marked in ∗ are optional

For more features & functions, Pease refer to the brochure.
